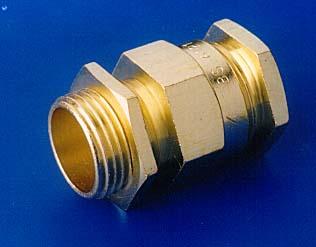

A2 BRASS CABLE GLANDS A1 BRASS CABLE GLAND
|
|
| |
|
 |
BRASS A2 CABLE GLAND
INDOOR OUTDOOR BRASS CABLE GLAND
CABLE GLANDS REF : A-101 |
-
STANDARD
:
B.S.
6121, PART-I
APPLICATION :
OUTDOOR
OR INDOOR FOR USE WITH ALL TYPE OF UNARMOURED CABLE
FUNCTION
:
PRODUCES
SEAL ON OUTER SHEATH OF CABLE OPTIONS
:
ALL
TYPE OF ACCESSORIES AVAILABLE FOR
INDOOR
OUTDDOR BRASS A2 CABLE GLAND
|
 |
| A2 Gland Size |
Mounting
Thread |
Cable Dimension |
Across Corner Diameter |
| |
Dia mm |
Length mm |
A (min) |
A (max) |
|
| A2 16 |
16 |
10 |
5.0 |
9.0 |
21.9 |
| A2 20S |
20 |
10 |
9.0 |
12.0 |
25.0 |
| A2 20 |
20 |
10 |
11.0 |
14.0 |
27.5 |
| A2 25S |
25 |
10 |
13.5 |
17.0 |
33.3 |
| A2 25 |
25 |
10 |
16.5 |
20.2 |
36.7 |
| A2 32S |
32 |
10 |
20.0 |
24.0 |
45.0 |
| A2 32 |
32 |
10 |
24.0 |
27.0 |
45.0 |
| A2 40S |
40 |
15 |
26.0 |
30.0 |
50.0 |
| A2 40 |
40 |
15 |
29.0 |
33.0 |
53.0 |
| A2 50S |
50 |
15 |
33.0 |
38.0 |
64.0 |
| A2 50 |
50 |
15 |
38.0 |
44.0 |
68.0 |
| A2 63S |
63 |
15 |
44.0 |
50.0 |
81.0 |
| A2 63 |
63 |
15 |
50.0 |
56.0 |
83.0 |
| A2 75S |
75 |
15 |
56.0 |
62.0 |
96.0 |
| A2 75 |
75 |
15 |
62.0 |
68.0 |
100.0 |
| A2 88/90 |
88/90 |
15 |
68.0 |
78.0 |
115.0 |
|
All
Dimensions are in MM.
*Not included in B.S. 6121, part-1 |
| |
